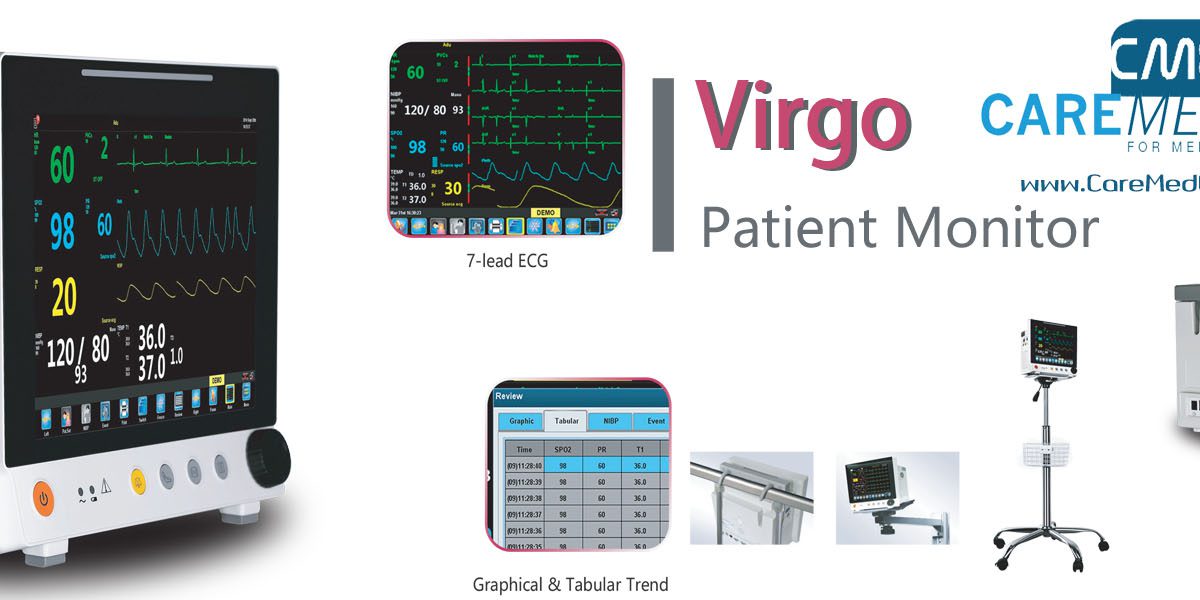

Patient Monitor | Virgo

Patient Monitor | Virgo

12.1”color TFT LCD screen,wide and flat screen design, economic and reliable

Configuration

ECG+SpO2+NIBP+2TEMP+PR+RESP, Li-ion battery

Optional

Masimo SpO2, IBP, CO2, Thermal recorder, Touch screen, CMS

• 12.1” color TFT LCD screen
• 8 waveform display,up to 12-lead ECG analysis
• Powerful calculation(Hemodynamic,Dose,Oxygenation,Ventilation)
• Pacemaker detection
• ST & arrhythmia analysis
• OxyCRGs screen
• Night mode, standby mode, venipucture mode
• Various mounting solutions.
• Wired/Wireless CMS, support HL7 protocol to HIS
• SpO2 pulse-tone modulation (Pitch Tone)
• MEWS(Modified Early Warning Score)
• Graphical & tabular trend review
• Rechargeable Lithium-Ion Battery
• 48 Hours full disclosure waveforms display.

Specifications

Display

12.1” TFT LCD
Resolution: 800 x 600
Number of traces: 8 waveforms

Lead type :3-lead,5-lead,12-lead

ECG waveform:2 channels,7 channels, 12 channels

Display sensitivity:

2.5mm/mV (×0.25), 5mm/mV (×0.5),

10mm/mV (×1.0), 20mm/mV (×2.0)

Wave sweep speed:

6.25mm/s, 12.5 mm/s, 25 mm/s, 50 mm/s

Bandwidth

Diagnostic mode: 0.05Hz~100Hz

Monitor mode: 0.5Hz~40Hz

Surgery mode: 1Hz~20Hz

Strong filter mode: 5Hz~20Hz

CMRR>106 dB

Notch: 50/60Hz notch filter can be set to on or off

Differential input impedance>5MΩ

Electrode polarization voltage range: ±400mV

Baseline recovery time<3s after defibrillation (in monitor

and surgery mode)

Calibration signal:1mV (peak – peak), accuracy ±3%

Measurement method : Thoracic electrical bioimpedance

Measuring lead: Lead I, II

Wave gain: ×0.25, ×0.5`, ×1, ×2

Measurement range: 3~150 rpm

Bandwidth: 0.3 to 2 Hz

Respiratory impedance range: 0.5-5Ω

Baseline impedance: 500-4000Ω

Gain: 10 grades

Scan speed: 6.25mm/s, 12.5 mm/s, 25mm/s and 50mm/s
