PERFORM-X

Radiology PERFORM-X

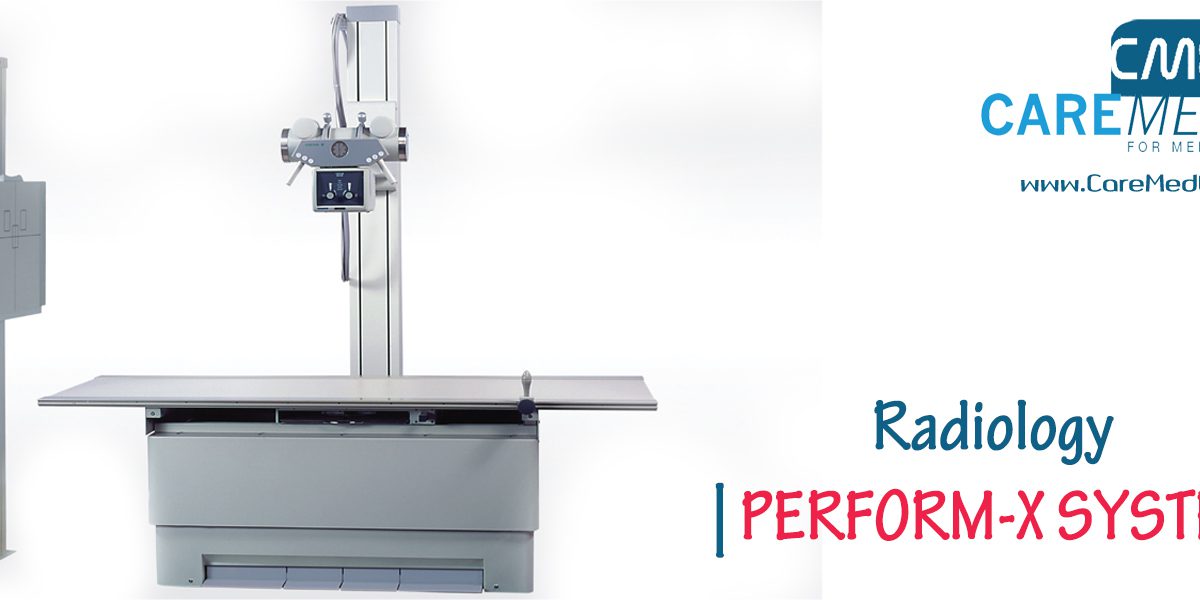

PERFORM-X SYSTEM
Radiographic System for General Imaging Procedures

GENERAL RADIOGRAPHIC SYSTEM |

The Perform-X HF Radiographic Systems are the most advanced radiographic systems . The various system con€ gurations allow for a completely customized x-raysystem built meeting your exacting imaging needs. The choice of generator power options and upgrade features makes the Perform-X HF Radiographic Systems your logical choice for a ordable, high quality, high performance and durable radiographic systems.

• High frequency microprocessor controlled generator

• Heavy duty 4-way table

• 360° tube rotation

• Floor mounted stands stand with variable combination of movements

• High quality X-ray tube, manual collimator and HV cables

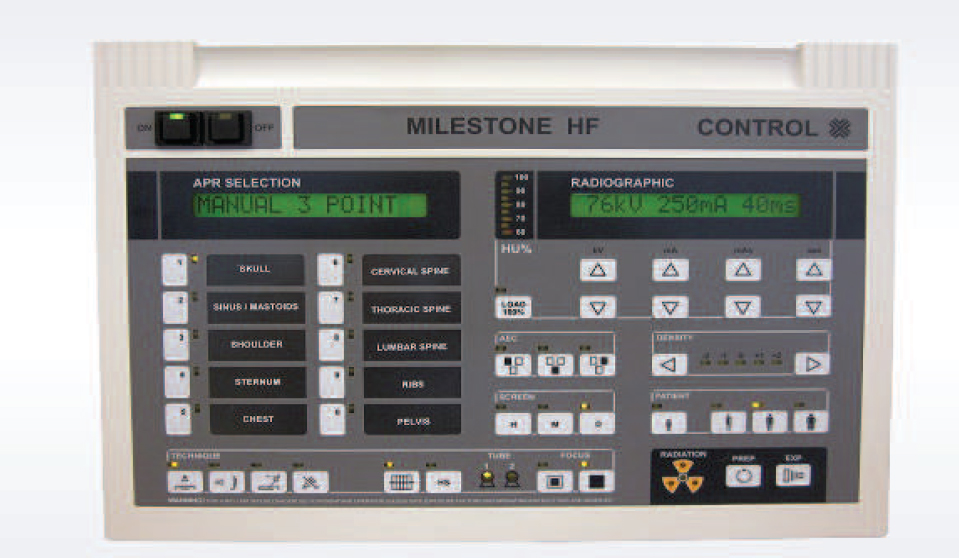

HIGH POWER X-RAY GENERATORS

The system is compatible with a range of generators, Milestone generators are available 32 – 80 kW, and are built to ensure safe and reliable service for many years. Our generators run on 3# 400 V, though line matching transformers are available for different power lines. The Milestone HF SE series (SE is for “stored energy”) generators need just 16 Amp single-phase power line and are manufactured in the 32, 40 and 50 kW power range; mAs rating is up to 500 mAs. Wide variety of peripheral equipment can be used with the generators, just to name a few: AEC, high speed x-ray tubes, DAP.
Our standard system is con€ gured with a 50 kW APEX generator, maximal techniques are 150kV@250mA, 100kV@500mA, 80kV@600mA. The number of stored anatomical programs is virtually unlimited, the user can open always new sections in the program to de€ ne new examinations.
Two digital detectors can be attached to the system.

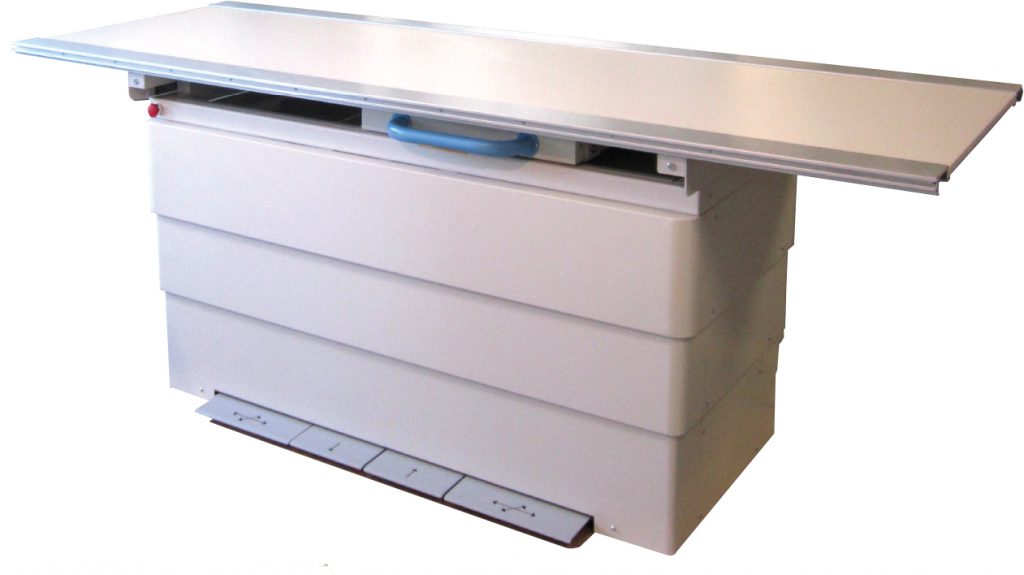

STYLIX FIX HEIGHT FOUR-WAY TABLE

The Stylix 2 Four-way Float Top Radiographic Table’s heavy-duty, compact, space-saving design provides exceptional versatility and allows for installations in small x-ray rooms.
While the four-way float top glides e” ortlessly on it’s precision bearing system and the convenient
location of the two-step foot pedals, which control all tabletop movements, the Stylix 2 four-way float top radiographic table is the excellent choice when searching for a Hospital Grade Quality
radiographic table.

PHOENIX VARIABLE HEIGHT RADIOGRAPHIC TABLE

The Phoenix elevating table is a real workhorse in this radiographic system. High load, though esthetic appearance, all movements can be released by the use of foot pedals. Extremely high range for vertical travel, easy patient positioning. Low table top absorption factor.

WS 99 WALL STAND
The WS 99 wall stand has an extended vertical travel of 149 cm, low detector position for extremities.
Full-size detectors or CR cassettes are accepted, a docking station can be used for the rotation of 35
x 43 cm devices without removing them from the grid cabinet or bucky device. Double wire ropes
guarantee for secure operation. The wall stand can be manual or equipped with motorized vertical
movement.
The wall stand is a  oor – to wall equipment, though a freestanding option (without wall) is available,
so it can be used anywhere in the x-ray room. The optional WS 99T is a tiltable wall stand; range of
the detector tilting is -20º + 90º.

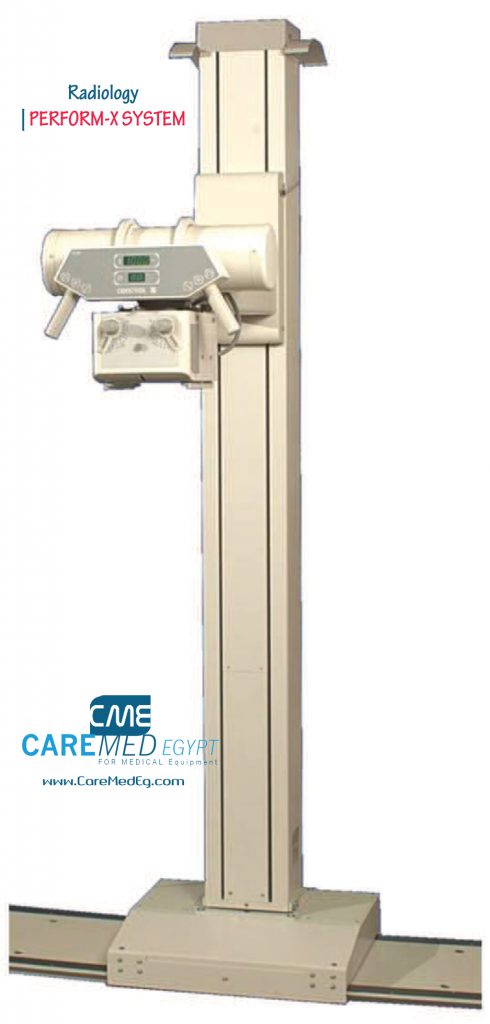

TS 99 RADIOGRAPHIC TUBESTANDS

Floor -only or  oor-to-ceiling/wall mounted Tube Stand Available in freestanding,  oor-to-wall or  oor-to-ceiling versions with a stationary or rotational column antransverse arm movement. Their extended vertical tracks allow for skull examinations of tall patients aexposures of the lower extremities.
The TS 99 family of tube stands with its  exible confguration options suits all general rad room reqirements. Choose and combine any of the options like rotational column (R),transverse arm movement (T), extended rails and digital SID display.

Ideal for studies from lower extremities to chest/skull exposures due to its wide vertical motion range.
Convenient Control: All tubestand controls are centrally located for easy access.
Electromagnetic lock system: Electromagnetic brakes provide positive tubestand exposure positioning.
Dual rope counterbalancing system: Ensures maximum stability and safety for the patient and operator.
Versatility: A wide variety of mounting and travel options o” er great  exibility for a wide variety of exposures.
Maneuverability: Designed with “easy-glide” e” ortless  movement for vertical, transverse and horizontal
movements.
