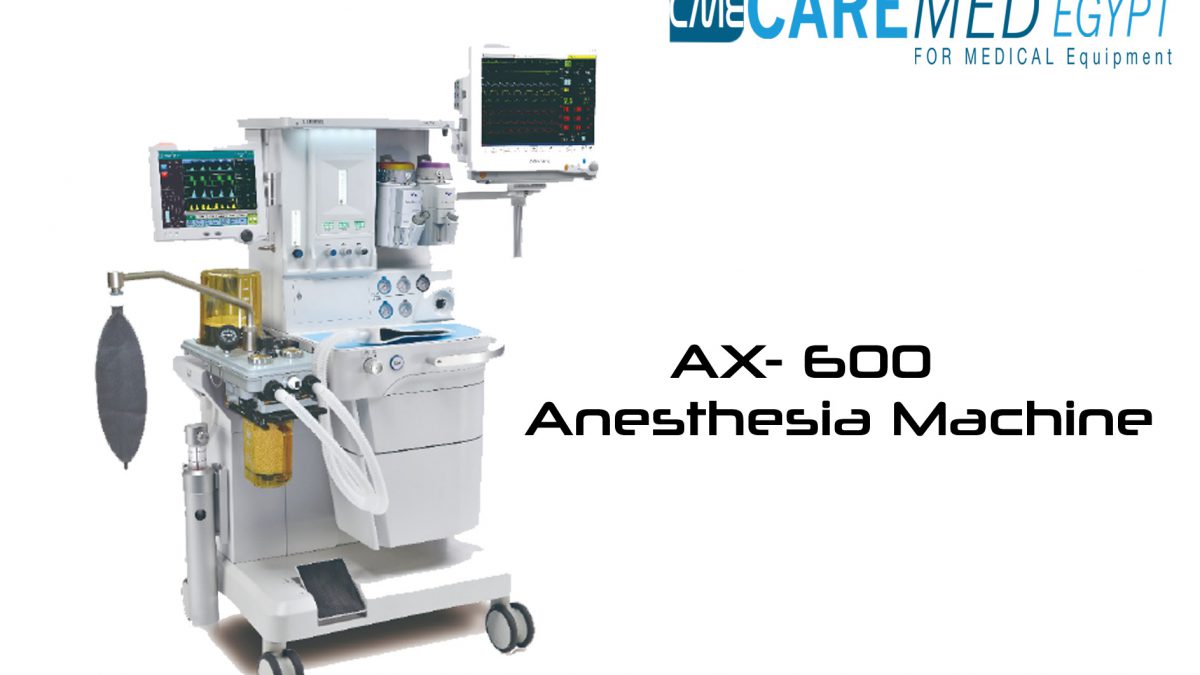

AX- 600 Anesthesia Machine
AX- 600 Anesthesia Machine
Technical Specification |
||||
Dimensions of the Complete Machine |
||||
Size |
810mm*1400mm*680mm |
|||
Weight |
125kg (standard configuration) (without anaesthesia evaporator and gas cylinder) |
|||
Top Plate |
||||
Maximum supporting |
Maximum load-bearing of top plate is 20kg |
|||
capacity |
||||
Operational dimensions |
508 mm* 313 mm |
|||
Workbench |
||||
Maximum supporting |
Maximum supporting capacity of workbench is 20kg |
|||
capacity |
||||
Operational dimensions |
472mm*248mm |
|||
Handrail |
||||
Length dimension |
750mm |
|||
Drawers |
||||
Drawers |
Upper: 462mm*287mm*141mmLower: 437mm*287mm*245mm |
|||
Gas-bag Sway Brace |
||||
Size |
Length: 400mmHeight: 240mm |
|||
Caster Wheels |
||||
Caster wheel |
4 wheels 5 inch, with two brake or central baking available |
|||
Display Screen |
||||
Type |
TFT LCD, allowing touch control |
|||
Size |
12.1 inch |
|||
Resolution |
800X600 pixels |
|||
Features |
||||
Anesthesia process |
Open, semi closed, closed circuit. |
|||
Patients |
Designed for adult, pediatric and neonate |
|||
