Cardiostart

Cardiostart
Biphasic Defibrillator Monitor

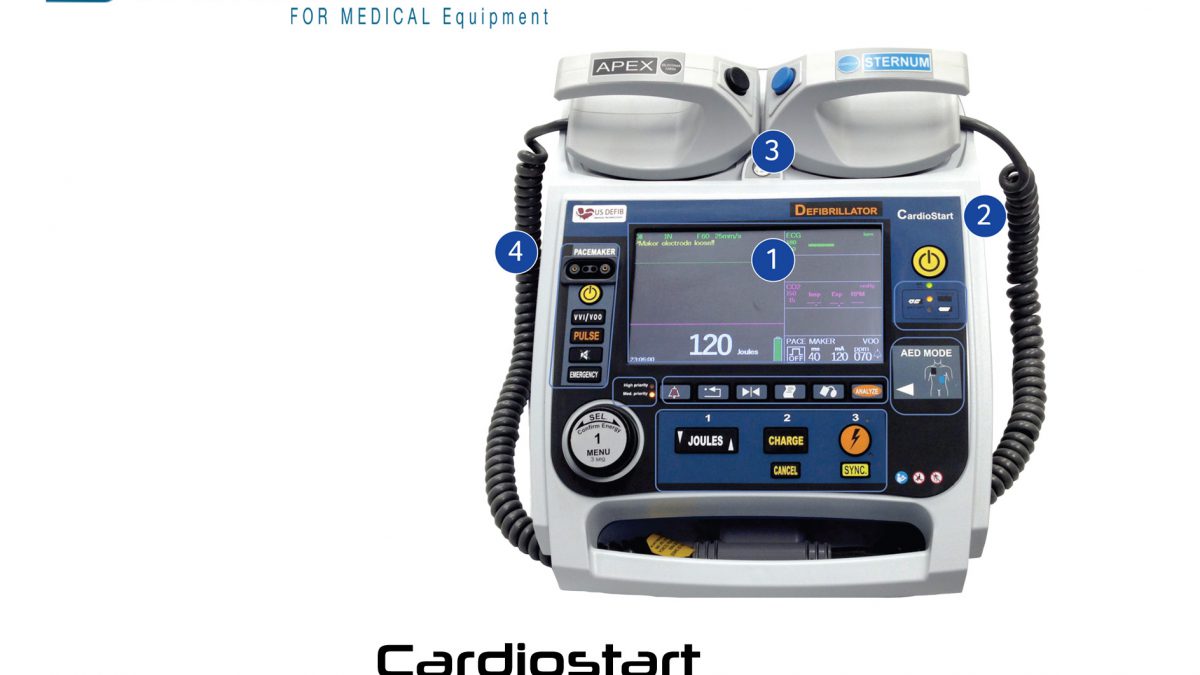

Cardiostart Biphasic Defibrillator Monitor

Lightweight, portable, easy to carry during emergency cardiac arrest

1- Monitor

7” High Definition Colored liquid crystal display – LCD for viewing
the ECG, Pacemaker, AED mode, Oximetry, Capnography and
NIBP parameters; battery status, alarms, day, time and shock counter indicators

2-  Battery Type

Lithium Ion internal rechargeable battery;
Battery status indicator – Low, charging and charged;
Capacity: Ability to perform up to 220 shocks (200 Joules) on a fully charged battery; or 4 Hours of continuous ECG monitoring.
Low battery alarm – audible and visual
Battery Life: 5 Years (4 years recommended by the manufacturer
to be exchanged)

Charging time: 4 Hours (when the battery is completey
discharged)

3 Reusable Paddles

Permanent interchangeable adult / pediatric paddles;
Energy seletion and charging/discharging function
External paddles contact indicator shows the patient’s chest
contact on the display (adult and pediatric use)

4 Integrated Printer

Model: Thermal Printer
Printing Format
1 Channel Automatic or Manual
Paper size: 48mm
Printer speed: 12,5 mm/s, 25 mm/s, 50 mm/s

ECG
Standard: 05 lead ECG Patient Cable – 12 derivations
(DI, DII, DIII, aVL, aVR, AVF, V1 to V6)
Optional: 03 lead ECG Patient Cable – 03 derivations (DI, DII, DIII)
Capture the ECG signal via defibrillation pads, transthoracic
adhesives of the pacemaker or via ECG Patient cable.
Heart rate: 10 to 300 bpm
Audible and visual alarms: Electrode loose, asystole, tachycardia,
bradycardia and fibrillation with digital adjustment
Freeze trace
Data Management
Internal Memory (2GB) to store 1000 events (Optional)
Defibrillation Electrodes
Shelf life: 24 months
Cable lengh: approx. 1.0m
Available: Adult and Pediatric hands-free electrodes
Languages Available: English and Spanish
Dimensions  Weight: Aprox. 11lbs (5Kg)
14 X 11 X 5 inches
