VENUS

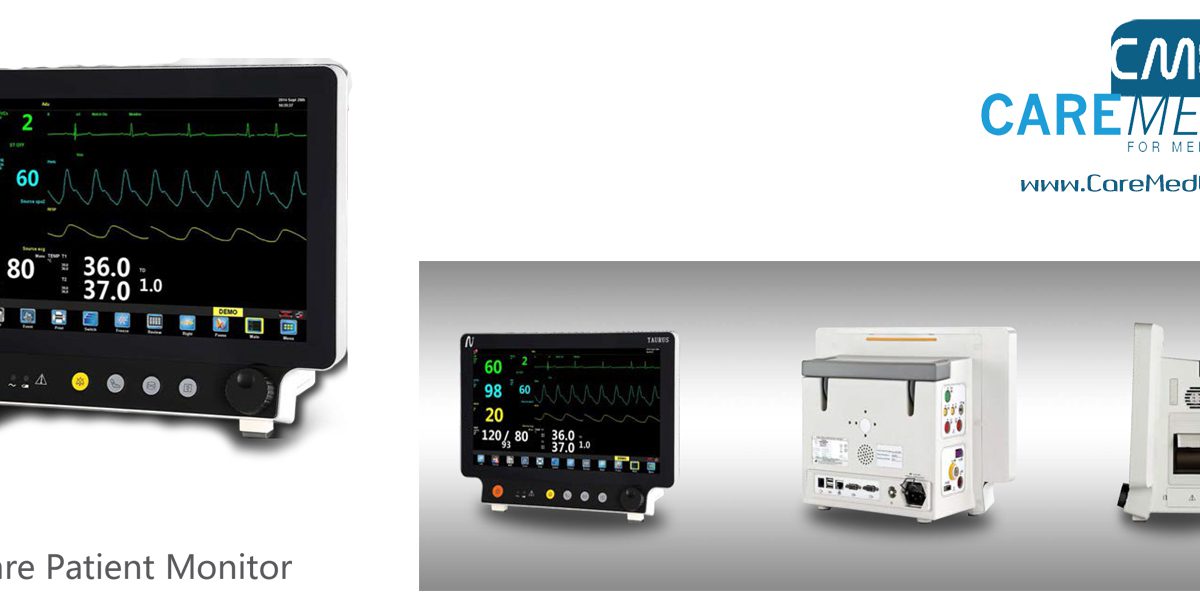

Critical Care Patient Monitor Venus

Critical Care Patient Monitor | Venus

Multiple parameter options satisfy the need for ICU,CCU,NICU.

• 6” High resolution TFT LCD Touch screen
• 10 waveform display,up to 12-lead ECG analysis
• Powerful calculation(Hemodynamic,Dose,Oxygenation,Ventilation)
• Pacemaker detection
• ST & arrhythmia analysis
• SpO2 support PVI and PI,low perfusion 0.2%
• Aspect BISx module, NMT module optional
• Wired/Wireless CMS, support HL7 protocol to HIS
• SpO2 pulse-tone modulation (Pitch Tone)
• VGA support external display
• Graphical & tabular trend review( 120 hours)
• 48 hours full disclosure wave review for each patient

Configuration

5-lead ECG,SpO2,NIBP,TEMP, Resp,PR; Li-ion battery

Optional

12-Lead ECG,Masimo/Nellcor SpO2,2-IBP,C.O.,EtCO2,Multi-gas,BIS,NMT;
VGA,Thermal Recorder,Wired/Wireless CMS

Masimo SET®SpO2

Measure-through Motion and Low
Perfusion pulse oximetry delivers
accurate and reliable oxygenation

Bispectral Index by Aspect

Monitor the level of consciousness of the
patient under general anesthesia or sedation.
provides BIS, SQI, EMG, SR, SEF, TP, PC value
and EEG wave.

Masimo Gas Technology
IRMA Mainstream & ISA

Sidestream Analyzers
Allows selection of the modality
best suited to the application

NMT
Intergrade Organon TOF-Watch® SX
Neuromuscular monitoring

IBP
2-4 Channel, support IBP waveform
overlapping display

C.O.
Cardiac Output
