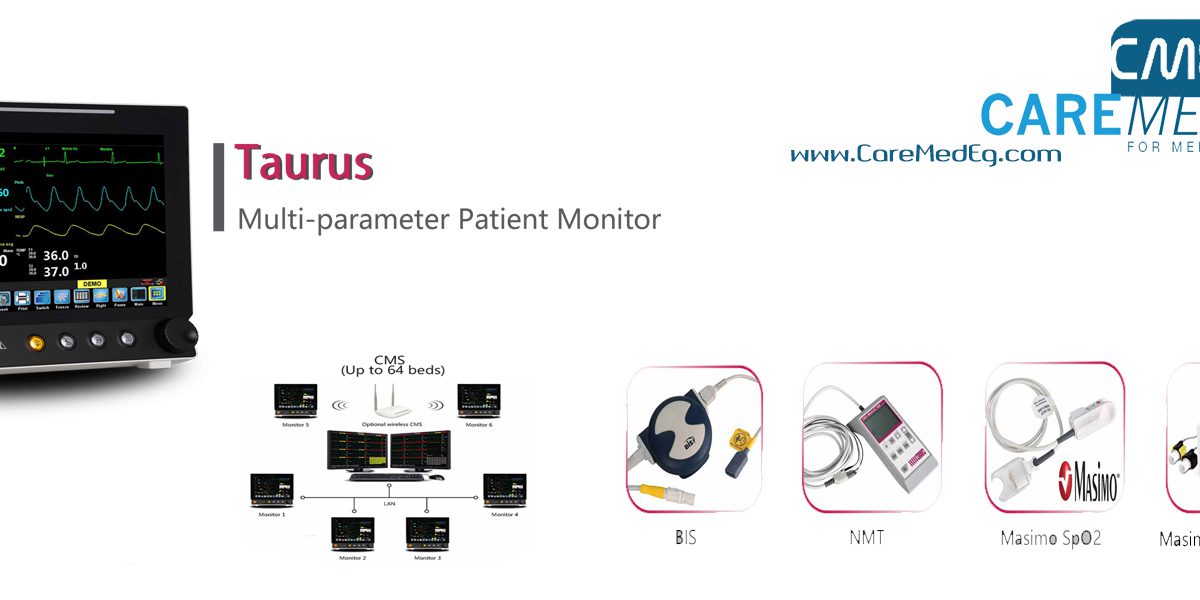

Multi-parameter Patient Monitor | Taurus

Multi-parameter Patient Monitor |Taurus

12.1”color TFT touch screen,wide and flat screen design, Multiple parameter options satisfy the
need for ICU,CCU,NICU.

Configuration

ECG+SpO2+NIBP+2TEMP+PR+RESP, Li-ion battery

Optional
Masimo/Nellcor SpO2, EtCO2, C.O, 2-IBP, AG, BIS,NMT,Thermal recorder

• 1” color TFT LCD Touch screen
• 8 waveform display,up to 12-lead ECG analysis
• Powerful calculation(Hemodynamic,Dose,Oxygenation,Ventilation)
• Pacemaker detection
• ST & arrhythmia analysis
• OxyCRGs
• BIS module, NMTmodule optional
• Wired/Wireless CMS, support HL7 protocol to HIS
• SpO2 pulse-tone modulation (Pitch Tone)
• MEWS(Modified Early Warning Score)
• Graphical & tabular trend review( 120 hours)
• 48h full disclosure wave review for each patient

Display
NIBP
12.1” color TFT LCD touch Screen,resolution: 800 x 600
8 waveform display,12-leads ECG display I/O
LAN: 1 standard RJ45 port
WLAN: IEEE802.11b/g/n
USB:2 USB connectors
SD: 1 SD card socket
Output:1 connector for nurse call,Defib sync analog output
VGA: 1 color VGA monitor connector(optional)
ECG
Measurement method : Automatic oscillometric method
Operating mode:Manual, automatic, continuous
Measurement unit: mmHg/kPa selectable
Typical measurement time: 20~40s
Measurement type: Systolic, Diastolic,Mean
Measurement range (mmHg)
Range of Systolic pressure: Adult 40-270
Pediatric 40-200
Neonatal 40-135
Range of Diastolic pressure: Adult 10-210
Pediatric 10-150
Neonatal 10-95
Range of Mean pressure: Adult 20-230
Pediatric 20-165
Neonatal 20-105
Measurement accuracy
Maximum average error: ±5mmHg
Maximum standard deviation: 8mmHg
Resolution: 1mmHg
Interval:1,2,3,4,5,10,15,30,60,90,120,180,240,480minutes
Overpressure protection: Software and hardware,double
safety protection
Cuff pressure range: 0-280mmHg
Lead type :3-lead,5-lead,12-lead
ECG waveform:2 channels,7 channels, 12 channels
Display sensitivity:
2.5mm/mV (×0.25), 5mm/mV (×0.5), 10mm/mV (×1.0),
20mm/mV (×2.0)
Wave sweep speed: 6.25mm/s, 12.5 mm/s, 25 mm/s, 50 mm/s
Bandwidth
Diagnostic mode: 0.05Hz~100Hz
Monitor mode: 0.5Hz~40Hz
Surgery mode: 1Hz~20Hz
Strong filter mode: 5Hz~20Hz
CMRR>100dB
Notch: 50/60Hz notch filter can be set to on or off
Differential input impedance>5MΩ
Electrode polarization voltage range: ±400mV
Baseline recovery time<3s after defibrillation (in monitor and
surgery mode)
Calibration signal:1mV (peak – peak), accuracy ±3%
SpO2 (Northern )
Measurement range : 0-100%
Resolution: 1%
Accuracy: ±2%（70-100%， Adult/Pediatric);
±3%（70-100%， Neonate);
0-69%,unspecified
Refreshing Rate: 1s
Masimo SpO2 (optional)

TEMP
Accuracy: ±0.1℃ or ±0.2℃ °F（without probe）
Measurement range: 5~50℃ （41~122°F）
Channel：Two channels
Measurement range : 0-100%
Resolution: 1%
Accuracy: ±2%（70-100%， Adult/Pediatric,non-motion,low
Resolution: 0.1℃
perfusion);
Parameters：T1,T2 and TD
±3%（70-100%， Neonate,non-motion);
±3%（70-100%， motion);
