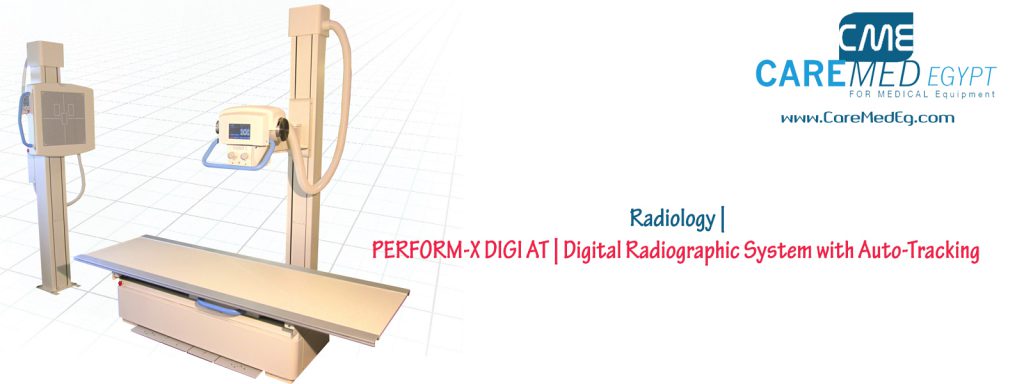

PERFORM-X DIGI AT | Digital Radiographic System with Auto-Tracking
Flexible connectivity to HIS – PACS systems
Best-in-class image quality
Delivers maximum productivity
Fully automated X-ray room
MAIN CONCEPT OF THE PERFORM-X DIGI AT
It is a single or dual Flat Panel digital system with motorized Tube Stand, Wall Stand and elevating Four-Way table.
The tube stand is either a floor-mounted or ceiling mounted design with similar or identical features. Depending
on user’s choice full automatic procedures are selectable, including auto-tracking, APR positioning and selectable
The motorized wall stand and tube stand ensure advanced stitching capabilities for full spine or full leg studies. The
motorized tilting mechanism of the wall stand allows accurate and easy positioning of the receptor for angulated
FULL AUTOMATION PROVIDES TOP PRODUCTIVITY
The Perform-X Digi AT provides the best-in class auto-positioning technology with fully-automated tracking and
manual override positioning. Electromagnetic coupling devices and clutches ensure safe and quick manual positioning
of the tube head, wall bucky and tube stand. The fully counterbalanced wall bucky and tube units can be adjusted
with near zero-force in any requested position. Manual override for quick positioning is a must feature in emergency
environments. Users decide the level of automatisation, just motorized movements, auto-tracking feature for
all components or just of selected ones. The extensive software background serves for easy and uncomplicated
workflow even in busy hospital environments.
All-IN-ONE PC AUTOMATED GENERATOR
CONTROL CONSOLE MAKES
The Touch screen monitor of the control PC on the APEX image acquisition system, serves as a generator control as
well, no other dedicated control console for the generator is needed. A preview is available within seconds on the
touch screen monitor, the processed image can be sent to any appropriate workstation in the hospital system, or
An optional touch screen monitor on the side of the x-ray tube serves for technique selection in remote use. Remote
control functions can be selected from the touch-screen monitor at the tubehead, and from the membrane console
on the wall stand, while manual control and manual motorized controls are to be selected at each individual
components. The elevation movement of the table is always motorized.
HIGH PERFORMANCE X-RAY GENERATOR
The Milestone APEX HF X-ray generator delivers the highest performance and reliability in any radiographic
environment. Choose from flexible output power configurations including single- phase stored energy version up
to 80 kW of power, and interface options like AEC control, high speed starter, safety interlocks, Dose Area Product
meter and more. Standard for the system is the 50 kW MS APEX 650 HF STR single tube high frequency generator,
in three phase or stored energy version.
GREAT CHOICE OF FLAT PANEL VARIATIONS
A variety of flat DR panels are available as a single or a dual panel system in both your table and the wall stand, or
in any different applications. Fixed, tethered and wireless panels will cover all needs for maximum flexibility and
ensure unparalleled coverage in all standard and special examination set-ups. 43 x 43 or 35 x 43 cm
(17” x 17” or 14” x 17”) flat panel detectors in CsI technology need lowest patient dose for optimal image quality.
TOP POSITIONING AND LOAD

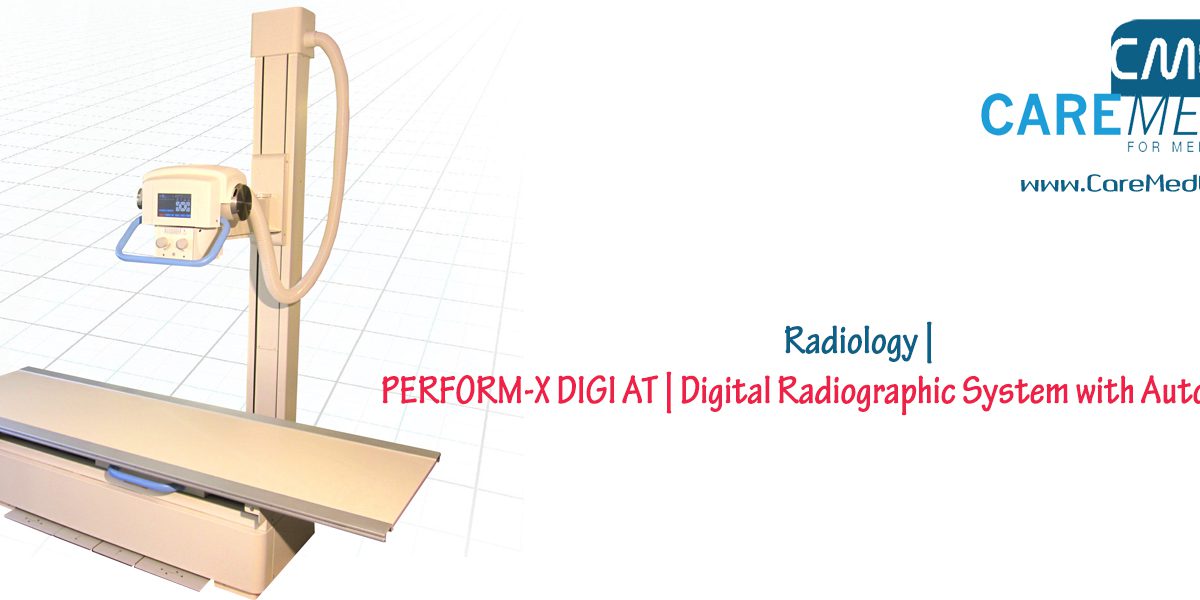

The elevating, four-way top radiographic table with its heavy-duty, but still graceful design offers a convenient
vertical height adjustment, four-way effortless positioning and an extremely low table top filtration for best
exposures. Motorized vertical travel with 225 kg (500 lbs) lifting capacity. Auto tracking function in combination
with the vertical travel of the tube, and motorized longitudinal displacement of the receptor when tube stand
moves. Extended vertical travel – table top heights between 44 and 85 cm (17” – 34“)from the floor – ensures easy
and safe patient transfer from a stretcher or facilitates positioning of handicapped or elderly patients.
WIDE VARIETY OF X-RAY PROCEDURES
Ceiling tube holders or floor-mounted tube stands provide the highest quality, durability and value. More economical floor-mounted versions are available in freestanding, floor-to -wall or floor-to-ceiling versions with fixed or rotational column and/or transverse arm movement. Their extended vertical tracks allow for skull examinations of tall patients as well as exposures of the lower extremities. Full spine and full leg studies are possible with the optional stitching capability.
The wall stand has smooth and precise operation through the special bearing system of the vertical carriage. Eye-catching design with the full-size cover and grip with integrated controls for all movements.
Counter balanced with vertical electric locks for full-size 43 cm x 43 cm (17” x 17”) digital panels. Extra trim weights, wall mounting cable box and cable house. Vertical travel of receptor: 149 cm (59”).
Freestanding and tilting versions available. Min./max. height of panel center line 350 – 1840 mm (14” – 72”). The motorized vertical movement of the receptor with manual override possibility ensures a master-slave combination of the tube holder and wall bucky stand in both ways.
Tilting version of the wall stand is also available.
