DEFIBSTART

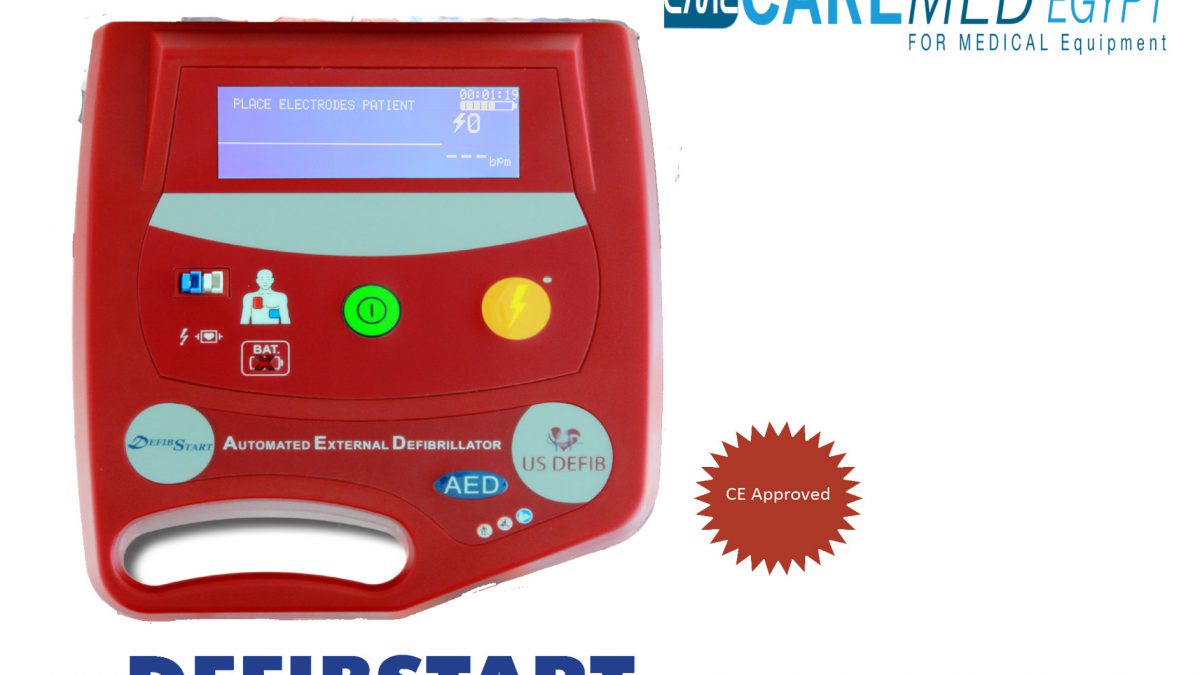

DEFIBSTART Automated External Defibrillator

DEFIBSTART

Saving lives can be easier than you think

1
Monitor with ECG on screen Liquid crystal display – LCD which displays: Text
commands, Heartbeat detector, Chronometer,
Battery status, 2min CPR Timer for guidance, BPM,and ECG Curve
Size: approx. 3.5”
2
Disposable
Pads
Easy and fast connection
3
Shelf life: 24 months
Cable lengh: approx. 1.0m
Available: Adult and Pediatric
hands-free electrodes
Innovated
Battery
System
5 seconds to exchange it!
Lithium-Polymer (Li-Po), 11.1 VDC, 2200mAh
Capacity: Ability to perform up to 140 shocks (150J) on
a fully charged battery; or up to 5 Hours of continuous
ECG monitoring.
Low battery alarm – audible and visual
Battery Life: 5 Years (4 years recommended by the
manufacturer to be exchanged)
Battery status indicator – Low, charging and charged

Be prepared and have the best
technology available for resuscitation

Internal Memory to store 1000 events
Data transfer through USB port (Phoenix Software)

Pulse Oximeter (SPO2)*
Pulse Reading Range: 10 to 300BPM
Tolerance: +/- 3%
SpO2 Reading Range: 0% to 100%
Accuracy: 70% – 100%

. AED with 12V DC input for ICU mobile*
12V DC Input for ICU Mobile

. AED with ECG option (3 lead cable)*
Standard: 3 lead ECG Patient Cable – derivation (DII)
Capture the ECG signal via defibrillation paddles or via ECG Patient cable.
Heart rate reading range: 10 to 300 bpm
