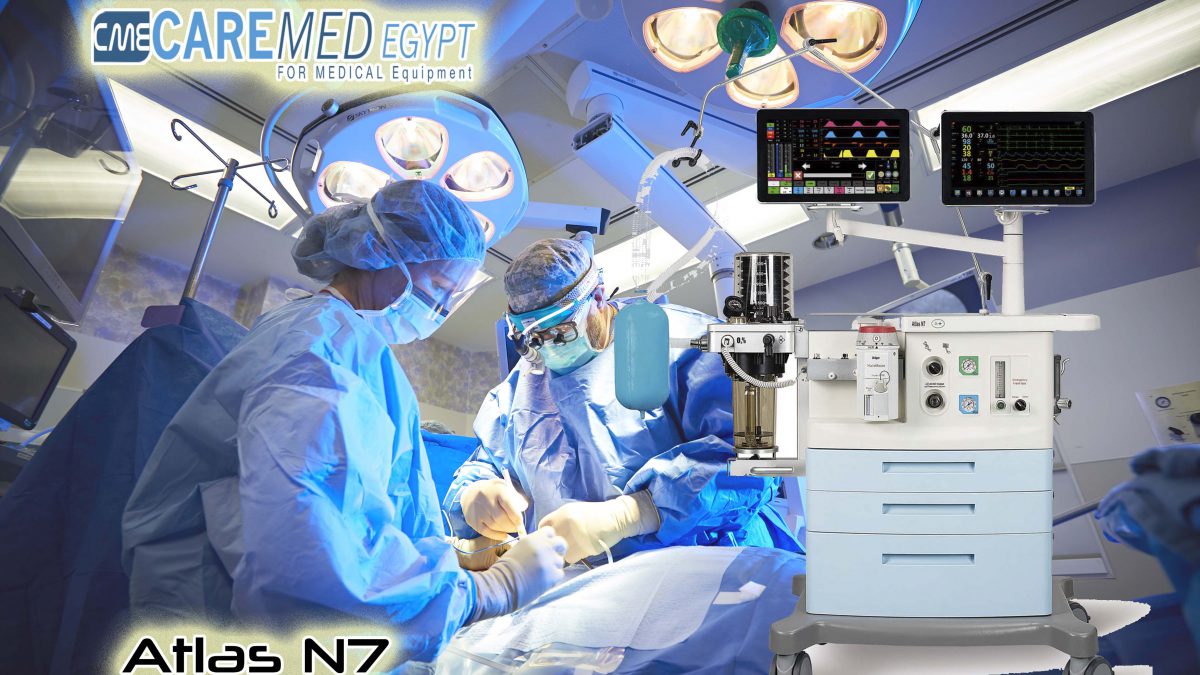

Atlas N7

Atlas N7

Features:

• 15.6”TFT touch screen, integrated patient monitor design.
• User friendly design interface, easy to operate.
• Human engineering design, rotatable supporting arm and adjustable angle.
• Full-electronic control and electronic flow meter, precise control and accurate data monitoring.
• All ventilation modes to satisfy neonate, pediatric and adult patients.
• Integrated breathing circuit with built-in heater.

Durable breathing system

Metallic breathing circuit, upward or downward bellows design.
Easy to dissassemble for clean and sterillization demand.
By-pass Tech for soda lime canister.
Position detection of breathing system installation.
Support the demand of autoclaving at 134℃.

Excellent CO2 absorber

Soda lime canister can be easily operated by one hand.
Easy to exchange soda lime during the operation.
Position detection of canister installation.
PPSU can support the demand of autoclaving at 134℃.

Large workbench

Can be easily disassembled for clean and
sterilization.
Stainless steel material can stand any
chemical sterilization agent.
LED lights equipped to provide lighting
for the workbench.

Superior ventilator

10~1500ml tidel volume range, suitable for neonates, pediatrics
and adults.
Fresh gas, compliance and leakage compensation.
VCV,PCV, PSV, SIMV, ACGO, Manual ventilation modes.
Alarms of incorrect installation of breathing system and soda
lime canister.

Auto FiO2
One key FiO2 set up, automatic adjust oxygen flow to maintain FiO2
if fresh gas has changed.
Touch and slide to modify the setting value, high efficient operating.

Electronic & Mechanical Flush O2
Flush O2 can be operated by electronic button on the touchscreen
or mechanical button on the workbench, user friendly control.

Color coding
Different color stands for different parameter unit, it is very intuitive
for the user to check and distinguish different parameters simply by
the colors.
